Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: F2-6567U
Certification: Fcc, Ce, Rohs
Product Status: Stock
Material: Aluminum Alloy
Place Of Origin: China
Packaging: Standard Export Packing
Transportation: Ocean,Air
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: FOB,CIF,EXW,CIP,DDP,DDU

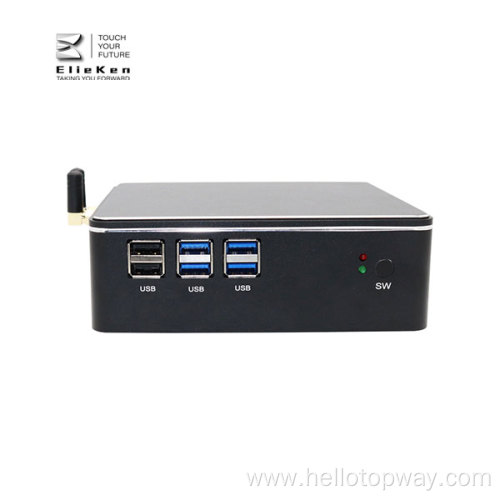

Mini PC Intel Core i7 Processor Windows 7/8/10
Mini PC Core I7 highly reliable, fanless, noise-free, energy efficient, rugged Small Desktop Computers designed for a large variety of demanding applications. Intel Nuc I7 designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in mini pc nuc i7 thanks to the rugged design, compact dimensions, and high functionality.
New Desktop Mini PC Intel Core i7 6567U Specifications:
| Basic Information: | |
| CPU | Intel Core i7-6567U |
| TDP | 15W |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation Intel Processor Fami |
| Memory | 1* SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |

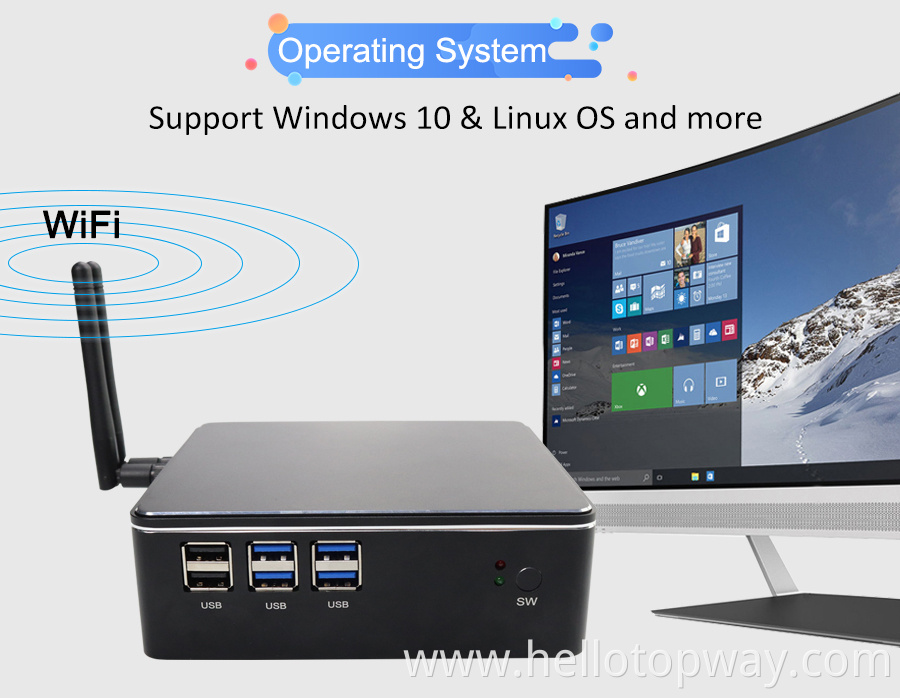

| OS | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC662 sound chip, 6-channel, Intel Panther Point HDA |
| Network | RTL8168E PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN |
| PXE | Yes |
| Video | Refer to CPU |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x DC In |
| LED | 2 x LED |
| USB | 2 x USB2.0, 4 x USB3.0 |
| Display | 1 x HDMI, 1 x VGA |
| LAN | 1 x RJ45 Intel Giga LAN |
| Audio | 1 x MIC, 1 x Audio |
| Others | 1 x Kensington Lock |
| Storage | |
| MSATA | 2*M-SATA3.0 slot for MSATA SSD, support 6Gb/s, |
| SATA | 1*SATA3.0 slot for SATA HDD or SSD, support 6Gb/s, |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi & Bluetooth module |
| Antenna | 2 x inner RF cables and 2 x external antennas, |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/70 Centigrade(32F~140F) |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 10%~90% (non-condensing) |
| Product Dimension & Details | |
| Size | 130*130*40mm |
| Weight | Net 1.0kg, Gross 2.5kg |
| Shell | Black color aluminum alloy(any customized color for bulk order) |

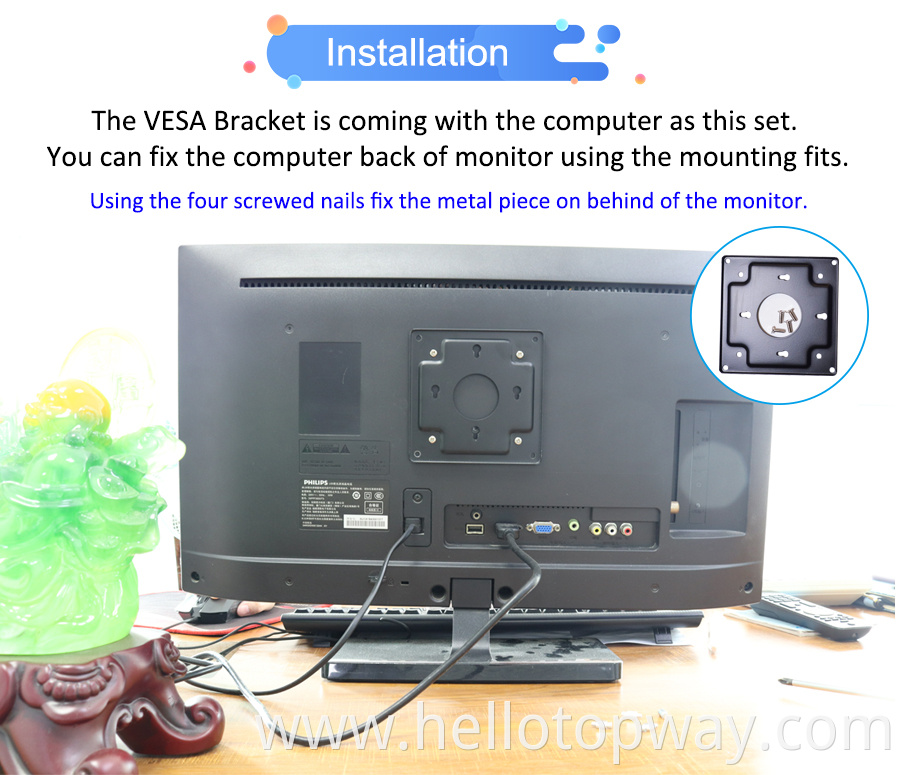

| Mounting | 4 Mounting holes on case |
| Cooling Mode | Fan |

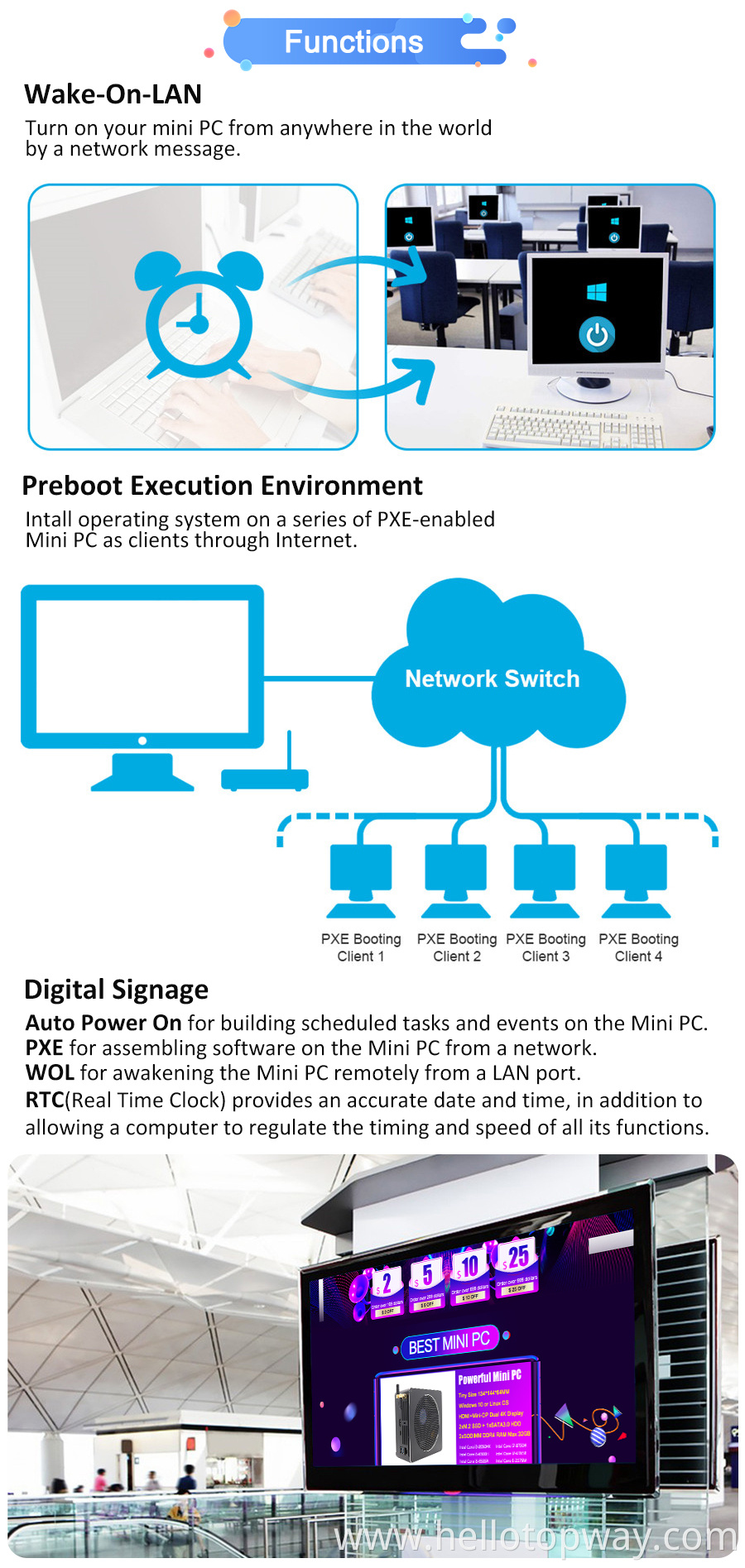

| Function | AWAL, WOL, RTC, |

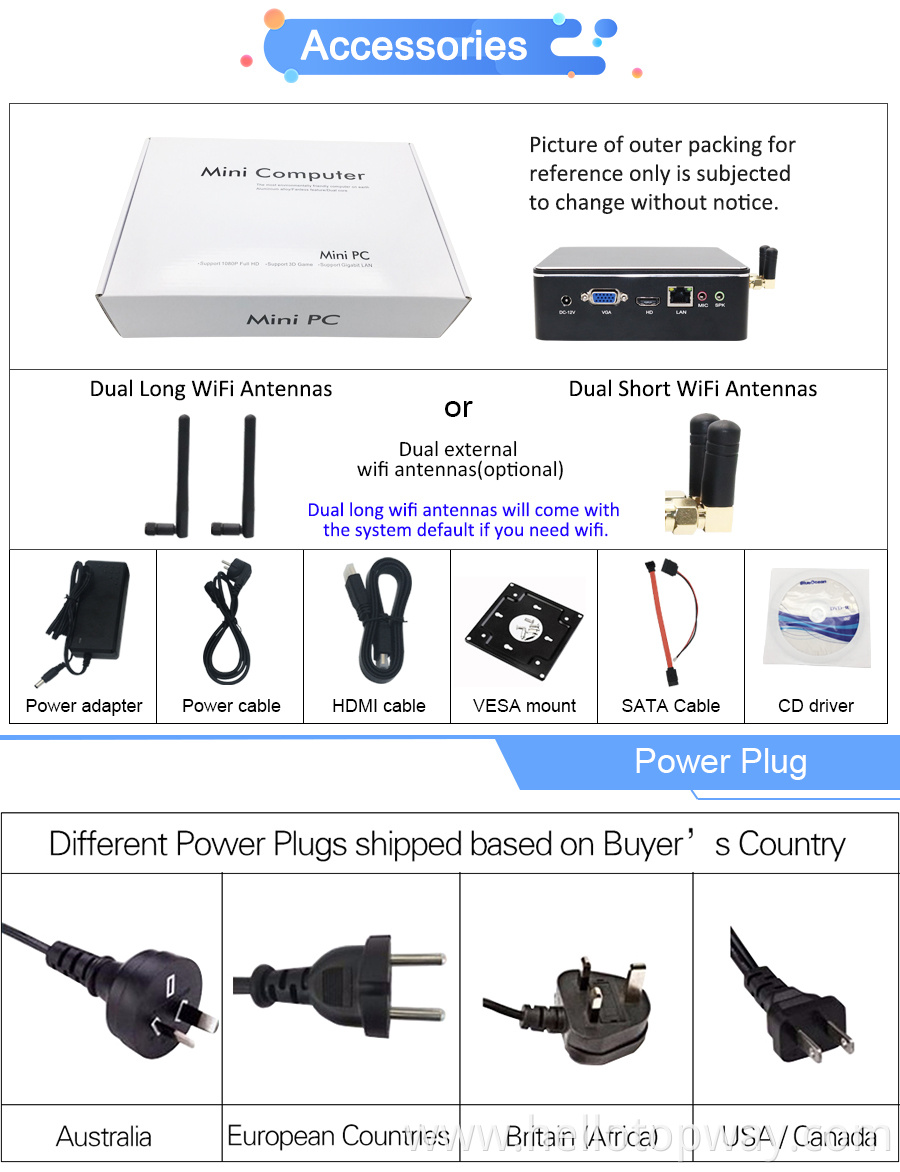

| Package Content | |
| Standard | 1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag, |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual |
Product Categories : Mini PC > Mini PC Core I7
