Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: M3-2955U 4010U 4500U
Certification: Fcc, Ce, Rohs
Product Status: Stock
Types Of: Full Tower
Material: Aluminum Alloy
Place Of Origin: China
Packaging: Standard Export Packing.
Transportation: Ocean,Air
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: FOB,CIF,EXW,DDP,DDU
If we need a home computer, we can choose a Intel Nuc computer. The new mini computer starts with 8GB memory and 256GB SSD solid state drive. Whether it is the appearance or the home function is enough, but for the requirements of the display, Intel Mini Pc is recommended to configure a 4K 24-inch-27-inch display.
Model: M3-2955U
CPU: Onboard Intel Celeron 2955U 1.4GHz Dual Core Dual Threads
Model: M3-4010U
CPU: Onboard Intel Core i3-4010U 1.7GHz Dual Core Four Threads
Model: M3-4500U
CPU: Onboard Intel Core i7-4500U 1.8GHz Max 3.0GHz(Turbo boost Technology) Dual Core Four Threads
| Basic Information: | |
| CPU | Onboard Intel Celeron 2955u / Intel Core i3-4010u / Intel Core i7-4500u |
| TDP | 15W |
| Motherboard Size | 120 x 120mm customized size |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Haswell |
| Memory | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333 |
| OS | Windows 7/Windows 8/Windows 10/Linux |
| PXE | YES |
| Audio | ALC662 sound chip, 6-channel Intel Panther Point HDA |
| Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel® HD Graphics / Intel® HD Graphics 4400 / Intel® HD Graphics 4400 |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 1 x LED |
| USB | 2 x USB2.0, 4 x USB3.0 |
| Display | 1 x VGA, 1 x HDMI |
| LAN | 1 x RJ45 Giga LAN |
| Audio | 1 x MIC, 1 x SPK |
| Others | 2 x Kensington Lock holes |
| Storage | |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi module |

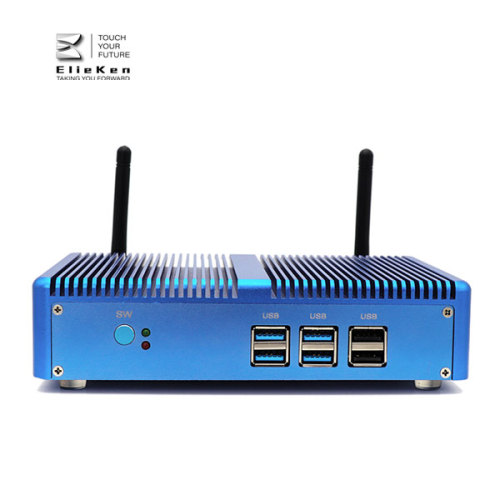

| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/+70 Centigrade |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |
| Size | 173*127*39mm |
| Weight | Net 0.8kg, Gross 1.2kg |
| Shell | Black/Sliver/Blue color aluminum alloy(any customized color for bulk order) |
| Cooling Mode | Fanless |
| Functions | Calls on function automatically, Wake-On-LAN, Kensington Lock |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount |
