Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: V310-8550U
Certification: Fcc, Ce, Rohs
Product Status: Stock
Material: Aluminum Alloy
Place Of Origin: China
Packaging: Standard Export Packing.
Transportation: Ocean,Air
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: EXW
Game Mini PC i7-8550U Quad Core 8 Threads Pocket PC Windows 10 Pro 2 DDR4 AC Wifi Desktop Mini Computer HDMI are designed for unique, office applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Fan Mini PC and nuc ryzen Desktop PC ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops an
| Basic Information: | |
| CPU | Onboard Intel Core i7-8550u |
| TDP | 15W |
| Motherboard | 140 x 130mm customized size |
| Chipset | Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5914 - 7th Generation Intel Processor Fami |
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB DDR4-2133/2400 |
| OS | Windows 10/Linux |
| PXE | YES |
| Audio | Intel High Definition Audio Controller |
| Network | 1 x Onboard Intel Ethernet Connection I219-LM 1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel® UHD Graphics 620 |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x Power In |

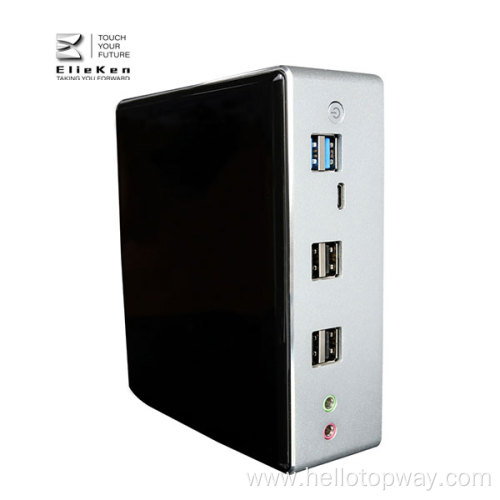

| USB | 4 x USB2.0, 4 x USB3.0 |
| SD Card | 1 x SD Card Reader |
| USB-C | 1 x Type-C USB3.0 |

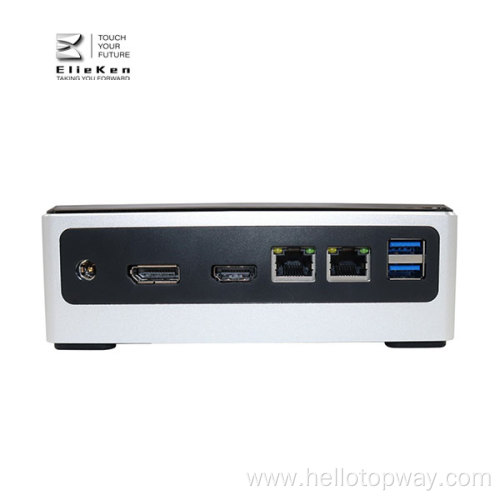

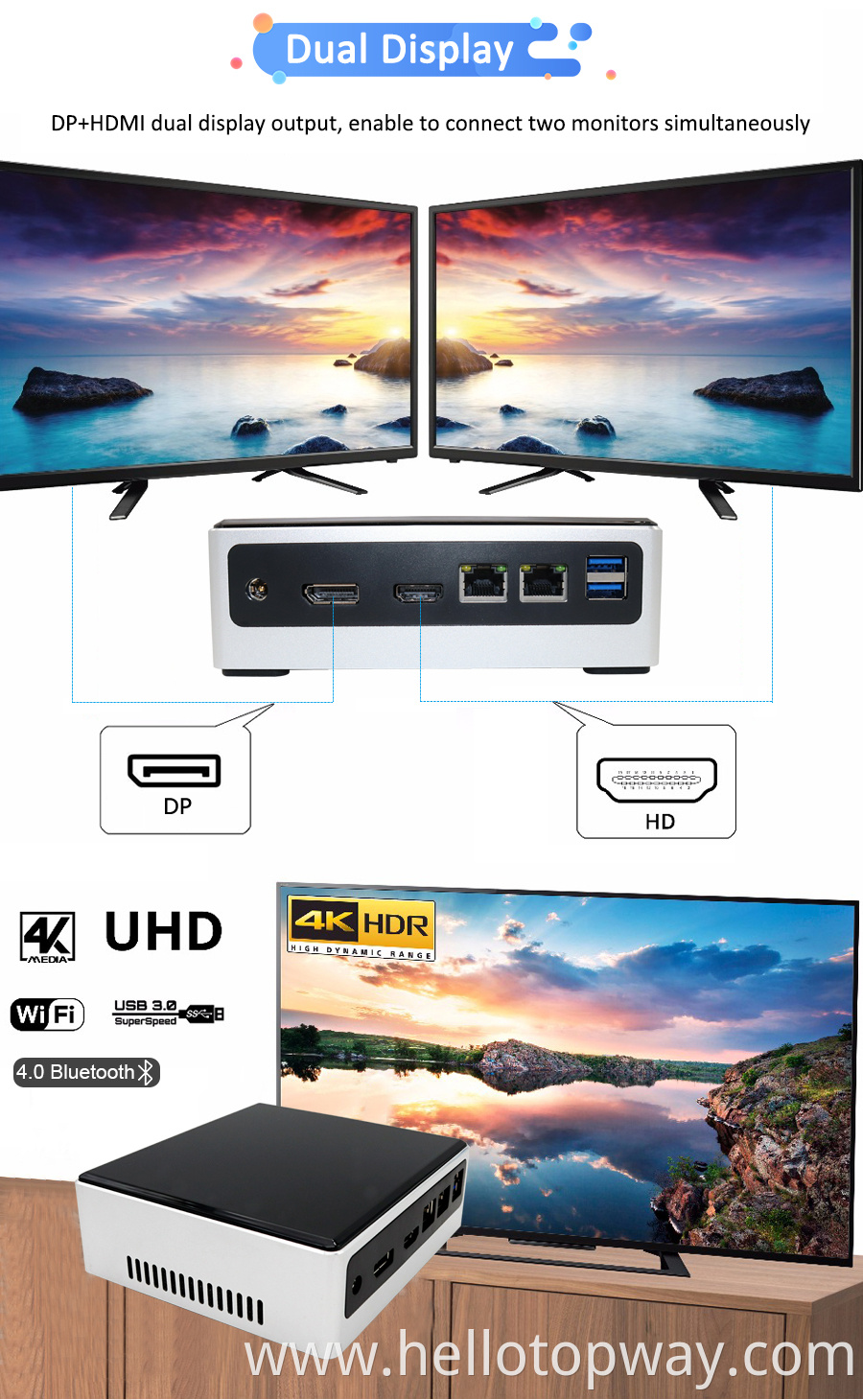

| Display | 1 x DP, 1 x HDMI 2.0 |
| LAN | 2 x RJ45 Giga LAN |
| Audio | 1 x MIC, 1 x SPK |
| Storage | |
| MSATA | 1 x M.2 slot for NGFF/NVME SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install) |
| Wi-Fi | |
| Module | 1 x M.2 NVME/NGFF slot for Wi-Fi module |
| Antenna | 2 x inner RF cables and without external antenna |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/70 Centigrade |
| Relative Humidity | 10%~85% |
| Product Dimension & Details | |
| Size | 137*150*50mm |
| Weight | Net 0.65kg, Gross 1.15kg |
| Shell | Black color PVP top and aluminum alloy body |
| Cooling Mode | With a copper cooling fan |
| Functions | AWAL, PXE, Wake On LAN, RTC |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord |
| Optional | 1xHDMI cable, 1xUser Manual |
Product Categories : Mini PC > Mini PC V310 Series
