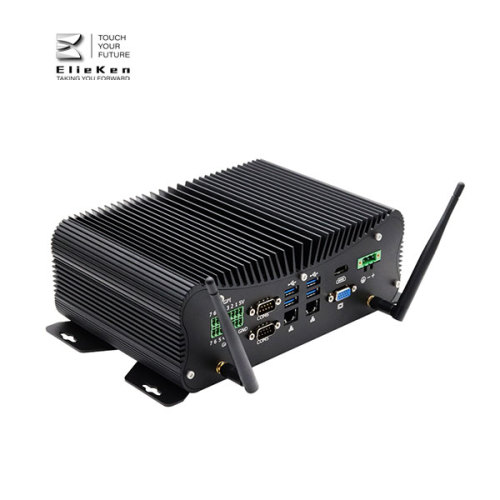

Fanless Pfsense Mini PC Industrial Router
The Industrial Mini PC Router is also incredibly versatile. Mini pc router pfsense can be easily configured to meet your specific networking requirements, allowing you to create a secure and efficient network infrastructure. Additionally, its compact size makes Mini Computer Router easy to install and integrate into any existing setup.
Furthermore, this Mini Computer comes with a user-friendly interface, making it simple to manage and monitor your network. You can easily set up and customize settings, track data usage, and troubleshoot any issues, all from a centralized dashboard.
In conclusion, the Industrial Router Mini Computer is the perfect solution for businesses in need of a reliable and efficient networking device. Its compact size, industrial-grade durability, and advanced features make it a must-have for any industrial setting. Upgrade your network infrastructure today and experience the power of this mini computer.
Industrial Fanless Computer Specifications:
| Basic Information: | |
| CPU | Onboard Intel 6th/7th/8th Gen Core i3/i5/i7 CPU Optional(can be customized in bulk) Onboard Intel Core i7-8559u(On-Hand) |
| TDP | Refer to CPU |
| BIOS | American Megatrends Inc. |
| Chipset | Refer to CPU |
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB |
| OS | Windows 7/Windows 8/Windows 10/Linux, WES7/10 |
| PXE | YES |
| Audio | Intel High Definition Audio Controller |
| Network | Intel(R) i210/i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
| Video | Refer to CPU |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 3pin phoenix terminal power supply input, support 9~36V |
| Button | 1 x DIP Switch, support ATX/AT boot mode |
| USB | 4 x USB3.0, 2 x USB2.0 |
| PS/2 | 1 x PS/2(keyboard and mouse 2 in 1) |
| Display | 1 x VGA, 1 x HDMI |
| LAN | 2 x Intel GbE RJ45 LAN |

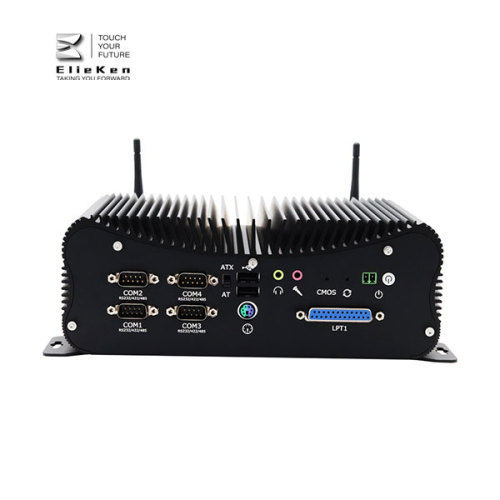

| COM | 6 x DB9 COM(4xCOM support RS422/RS485) |
| GPIO | 1 x GPIO( 7pin input, 7pin output) |
| LPT | 1 x LPT |
| Audio | 1 x MIC, 1 x SPK |
| SIM | 1 x embedded SIM card slot onboard |
| Others | 1 x Reset, 1 x CMOS clear button, 1 x 2pin Phoenix terminal power supply input |
| Storage | |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +9V~+36V, recommend 12V/5A |
| Operating Temperature | -20/+60Centigrade |
| Storage Temperature | -30/+70 Centigrade |
| Storage Humidity | 10%~90%@30 Centigrade (non-condensing) |
| Product Dimension & Details | |

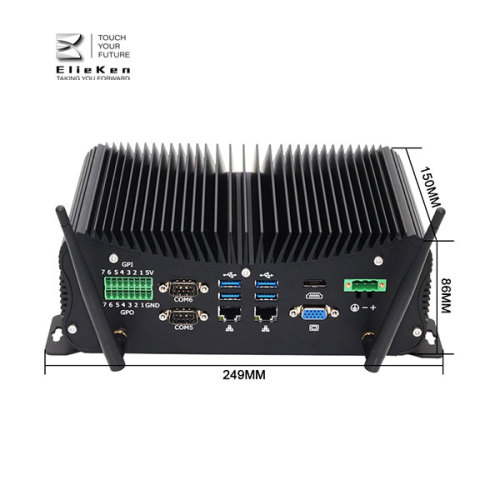

| Size | 249*150*86mm |
| Weight | NW 2.2KG, GW 3.5KG |
| Shell | Black color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 mounting holes on case |
| Cooling Mode | Fanless |
| Functions | Watchdog, One key reset, AWAL, RTC, WOL(ATX mode) |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
