Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: M3-N3700L
Certification: Fcc, Ce, Rohs
Product Status: Stock
Types Of: Full Tower
Material: Aluminum Alloy
Place Of Origin: China
Packaging: Standard Export Packing
Transportation: Ocean,Air
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: FOB,CFR,CIF,EXW,CIP,DDP,DDU

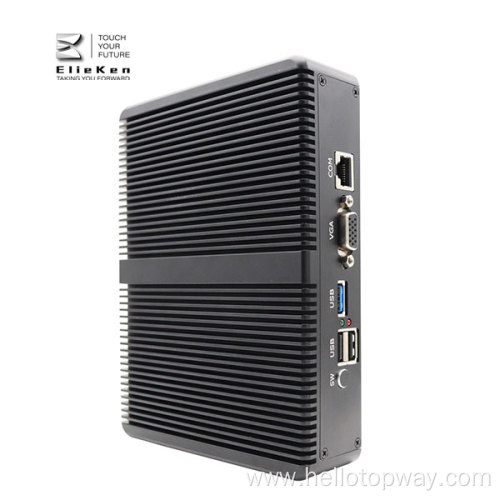

Mini PC N3700 Fanless
Highly reliable, fanless Mini PC, noise-free, energy efficient, rugged Best Micro PCs designed for a large variety of demanding applications. Fanless pc designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and intel Nuc Fanless high functionality.
Main advantages of ElieKen nuc fanless:
1. Small size: all ElieKen nuc fanless best micro pcs smaller than A4 paper, some of them only 3.7 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
2. Durability: all those fanless best micro pcs are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminium alloy computer case, very durable.
3. Low power: all the ElieKen fanless best micro pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
4. Universal performance: ElieKen fanless best micro pcs compatible with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.
Micro PC M3-N3150L Specifications:
| Basic Information: | |
| CPU | Onboard Intel Pentium N3700 1.6GHz Max 2.4GHz(Turbo boost Technology) Four Core Four Threads. |
| TDP | 15W |
| Motherboard Size | 12*12cm |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Braswell SOC Express chipset |
| Memory | 1* SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB DDR3L-1600 |
| OS | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC662 sound chip, 6-channel Intel Panther Point HDA |
| Network | Onboard Realtek RTL8111DL PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel HD Graphics(320MHz~640MHz) |
| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 1 x LED |
| USB | 2 x USB2.0, 4 x USB3.0 |
| Display | 2 x HDMI |
| LAN | 2 x RJ45 Intel Giga LAN |
| Audio | 1 x MIC, 1 x SPK |
| Others | 2 x Kensington Lock holes |
| Storage | |
| MSATA | 1 x M-SATA3.0 SSD: 8G/16G/32G/64G/128G/256G/512G/1TB, support 6Gb/s |
| SATA | 1 x SATA3.0 HDD: 160G/320G/500G/1TB, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi module |
| Antenna | 2 x inner RF cables and 2 x external antennas |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/+70 Centigrade (32F~140F) |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |

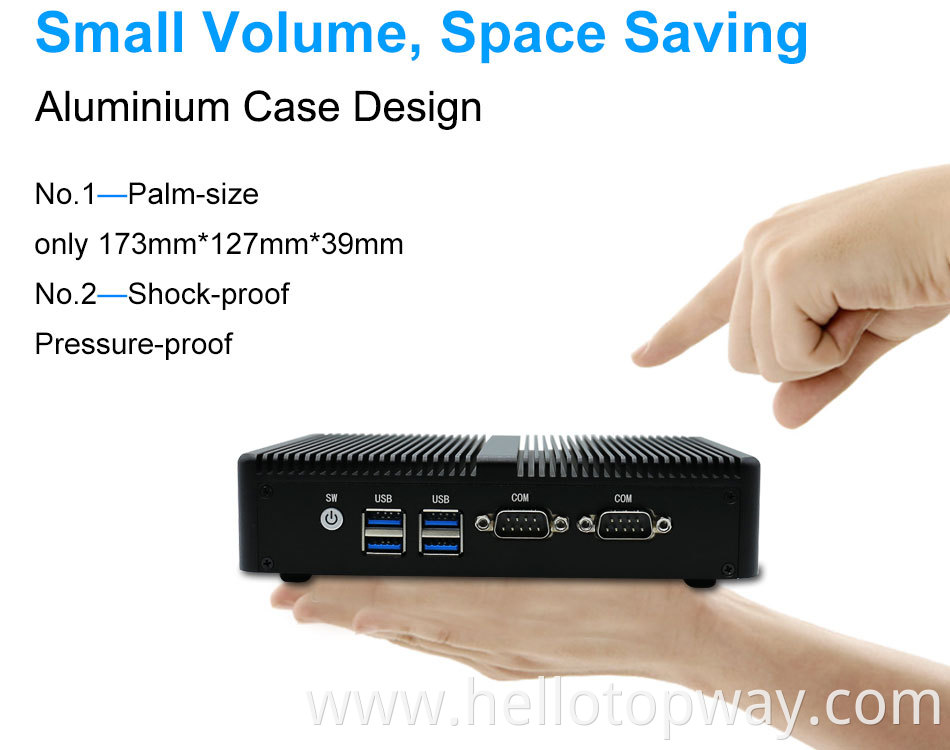

| Size | 173*127*39mm |
| Weight | Gross 1.5kg |
| Shell | Silver/Blue color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 Mounting holes on case |
| Cooling Mode | Fanless |
| Functions | Calls On Function Automatically, Wake-On-LAN, Kensington Lock |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xWarranty Card |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
Product Categories : Mini PC > Mini PC Core I3
