Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: E1-5200U
Certification: Fcc, Ce, Rohs
Product Status: Stock
Types Of: Full Tower
Material: Aluminum Alloy
Place Of Origin: China
Packaging: Standard Export Packing.
Transportation: Ocean,Air
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: FOB,CFR,CIF,EXW,CIP,DDP,DDU

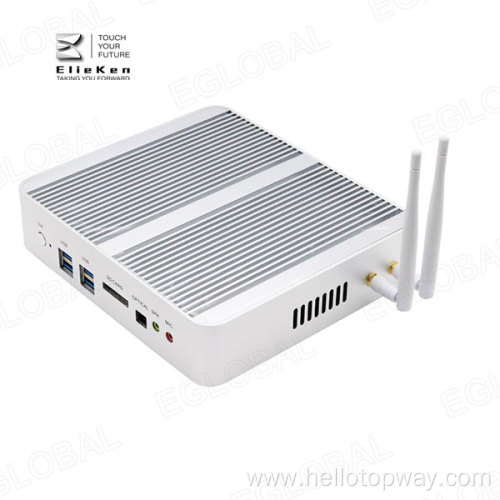

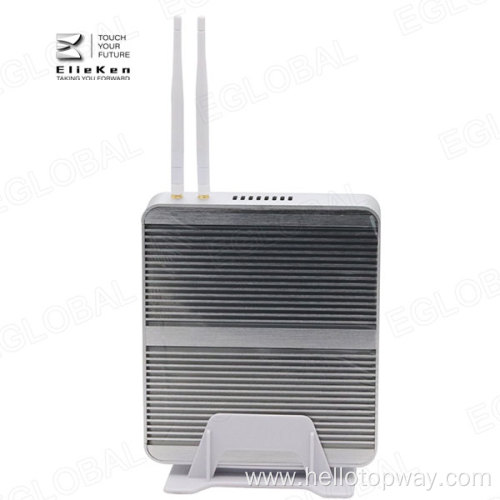

ElieKen small Desktop mini computer Windows 10 Intel Nuc I5 Fanless Pc best Mini PC series are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

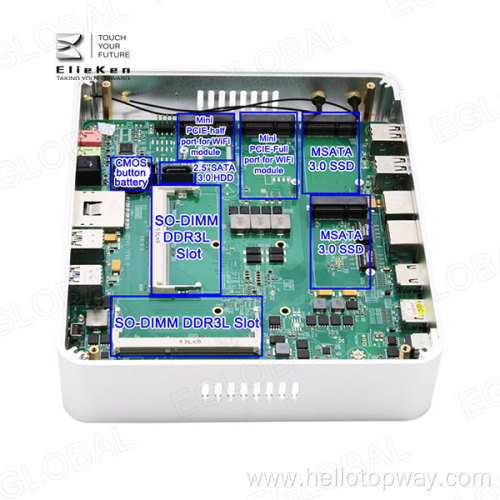

The Small Desktop Computer Windows 10 Intel Fanless Best Mini PC Specifications:
| Basic Information: | |
| CPU | Intel Core i5-5200U |
| TDP | 15W |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | UP TO UPU |
| Memory | 2* SO-DIMM DDR3L Slot , Support 4GB/8GB/16GB Dual Channel, DDR3L 1333/1600 LPDDR 1333 /1600 |
| OS | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC897 chip, 7.1 channel sound Intel Lynx Point-LP HDA |
| Network | Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN |
| Video | Intel HD Graphics 5500/5000/5500 |

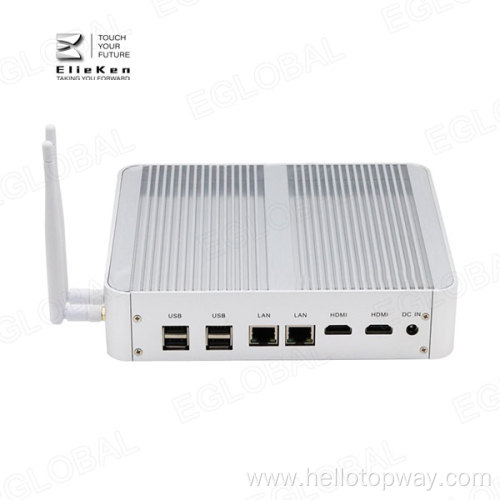

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x DC In |
| LED | 1 x LED |
| USB | 4 x USB2.0, 4 x USB3.0 |
| Display | 2 x HDMI |
| LAN | 2 x RJ45 Intel Giga LAN |
| Audio | 1 x MIC, 1 x SPK |
| Others | 1 x SD Card Reader, 1 x Optical |
| Storage | |
| MSATA | 1 x M.2 SSD, support 6Gb/s |
| SATA | 2 x SATA 3.0, support 6Gb/s |
| Wi-Fi | |
| Module | 1 x mini PCIE-half port for Wi-Fi module 1 x mini-PCIE port(WIF I& Bluetooth) |
| Antenna | 2 x inner RF cables and 2 x external antennas, |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/70 Centigrade(32F~140F) |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |
| Size | 208*180*45mm |
| Weight | Net 1.5kg, Gross 3.0kg |
| Shell | Silver color aluminum alloy(any customized color for bulk order) |
| Mounting | 4 Mounting holes on case |
| Cooling Mode | Fanless |
| Package Content | |
| Standard | 1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag |
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag |
Product Categories : Mini PC > Industrial Mini PC
