Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: M3-J1900L4
Certification: Fcc, Ce, Rohs
Product Status: Stock
Types Of: Full Tower
Material: Aluminum Alloy
Place Of Origin: China
Transportation: Air,Ocean
Port: Guangzhou
Payment Type: L/C,T/T,Others
Incoterm: FOB,CIF,EXW,DDU,DDP
Fanless Mini PC low consumption TDP only 10W save much energy and eco-friendly. Can stand vertically by a metal bracket coming with the computer as default accessories. Fanless pc strong heat dissipation, cool touch. Built-in large-diameter cooling air, larger air volume, double cooling pipes, rear air outlet design. Quieter, removes heat faster, Intel Nuc Fanless keeps the body at a normal temperature, refuse to get hot, keep cool for a long time, and enjoy a comfortable experience.

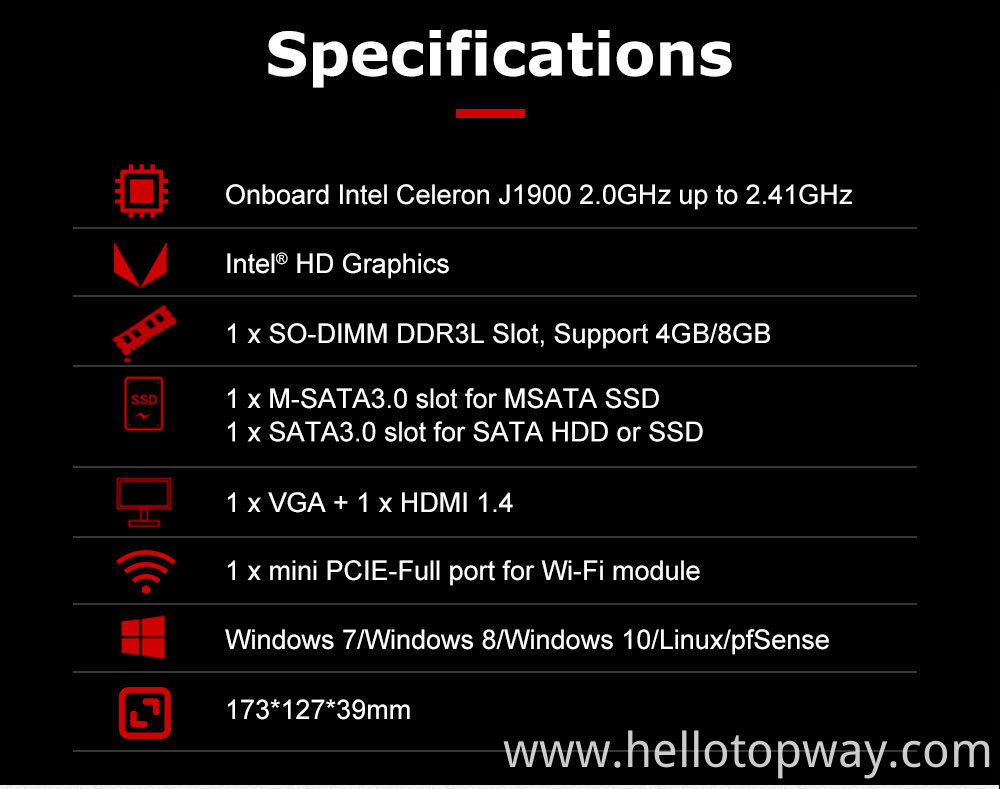

| Basic Information: | |
| CPU | Onboard Intel Celeron J1900 |
| TDP | 10W |

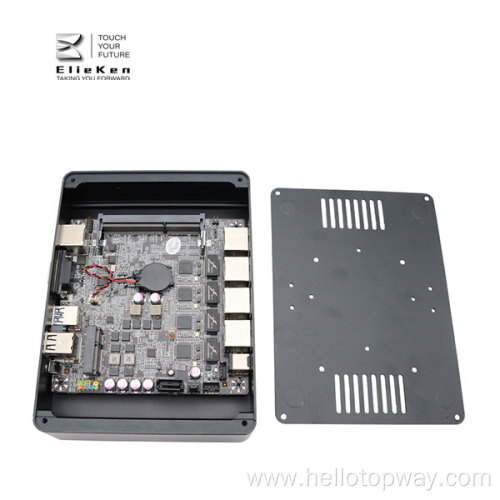

| Motherboard Size | 120 x 120 mm customized size |
| BOIS | AMI BIOS, ACPI supported |
| Chipset | Intel Bay Trail-M/D - Bay Trail |
| Memory | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L-1066/1333/1600 |
| OS | Windows 7/Windows 8/Windows 10/Linux/pfSense |
| | |
| Network | 4 x Onboard Intel I211 Gigabit Network Connection |
| Video | Intel® HD Graphics |

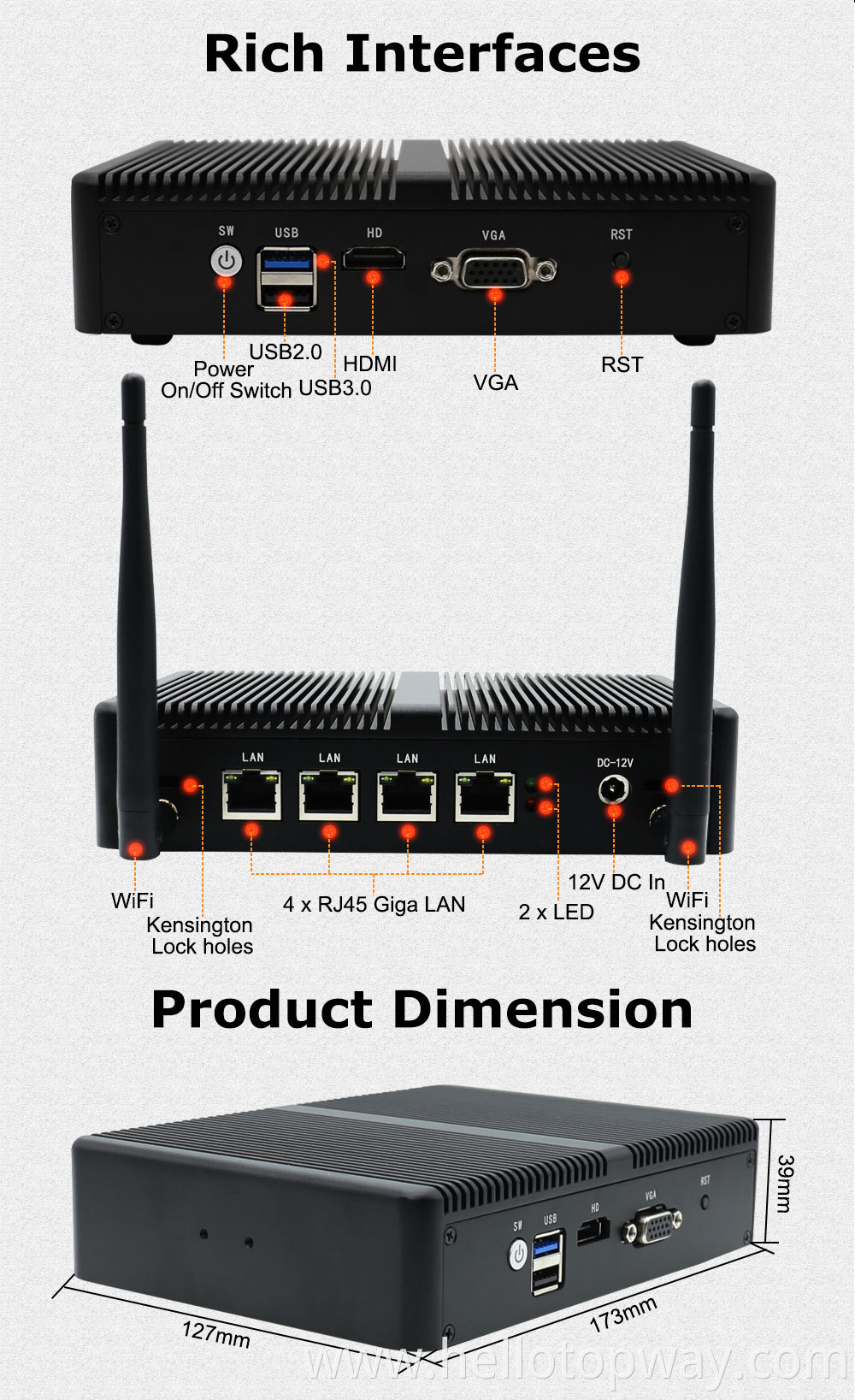

| Input/output port | |
| Switch | 1 x Power On/Off Switch |
| Power | 1 x 12V DC In |
| LED | 2 x LED |
| USB | 2 x USB2.0, 1 x USB3.0 |
| Display | 1 x VGA |
| COM | 1 x RJ45 COM |

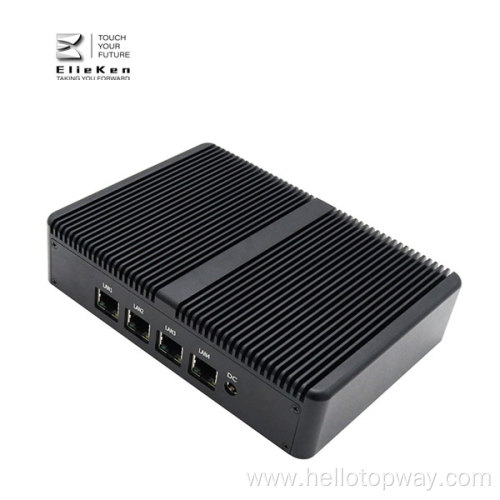

| LAN | 4 x RJ45 Giga LAN |

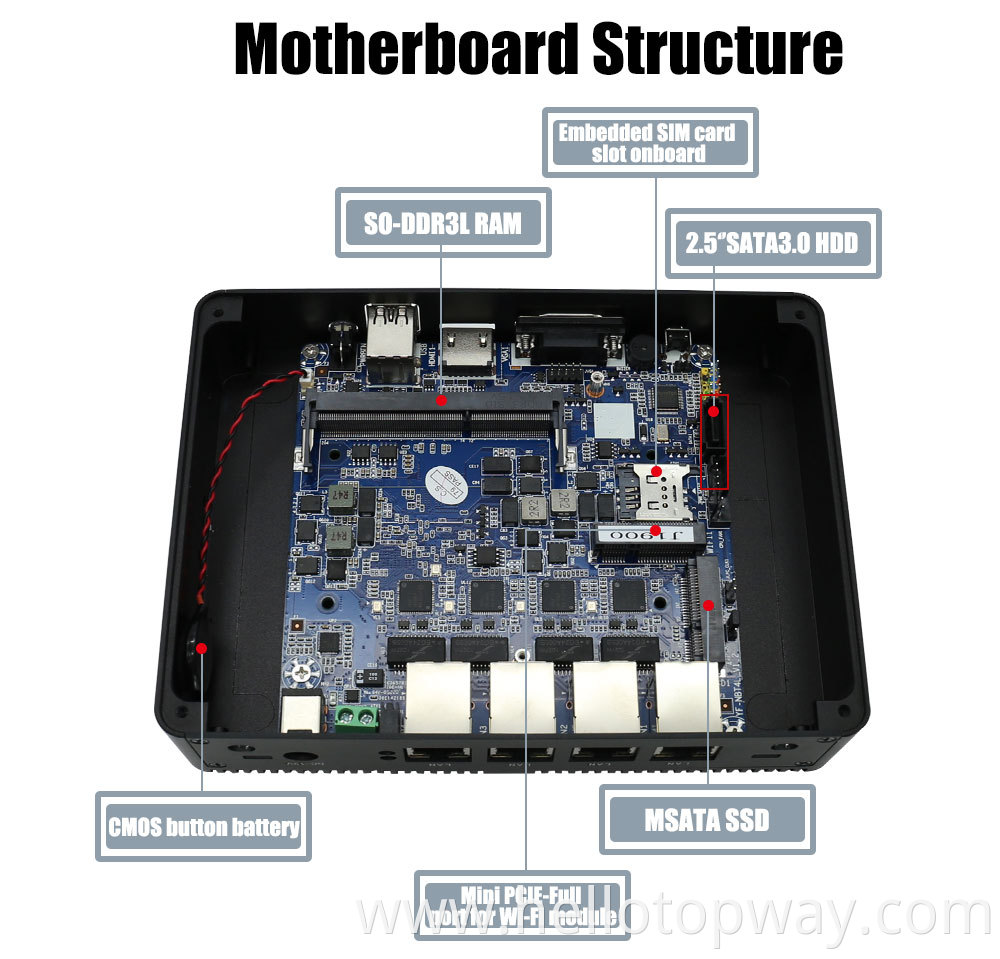

| Others | 1 x embedded SIM Card slot(back of PCB) 1 x mini PCIE-full port for 3G/4G module(back of PCB) |
| Storage | |
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | DC +12V~+19V, recommend 12V/5A |
| Operating Temperature | 0/+70 Centigrade |
| Storage Temperature | -20/+85 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |

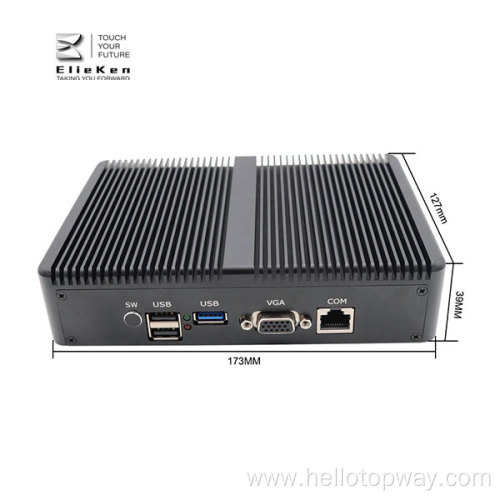

| Size | 173*127*39mm |
| Weight | Net 0.8kg, Gross 1.2kg |
| Shell | Black color aluminum alloy(any customized color for bulk order) |
| Cooling Mode | Fanless |
| Functions | Auto power on, Wake-On-LAN, PXE, RTC |
| Package Content | |
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket |
| Optional | 1xUser Manual, 1xVESA mount |
Product Highlight

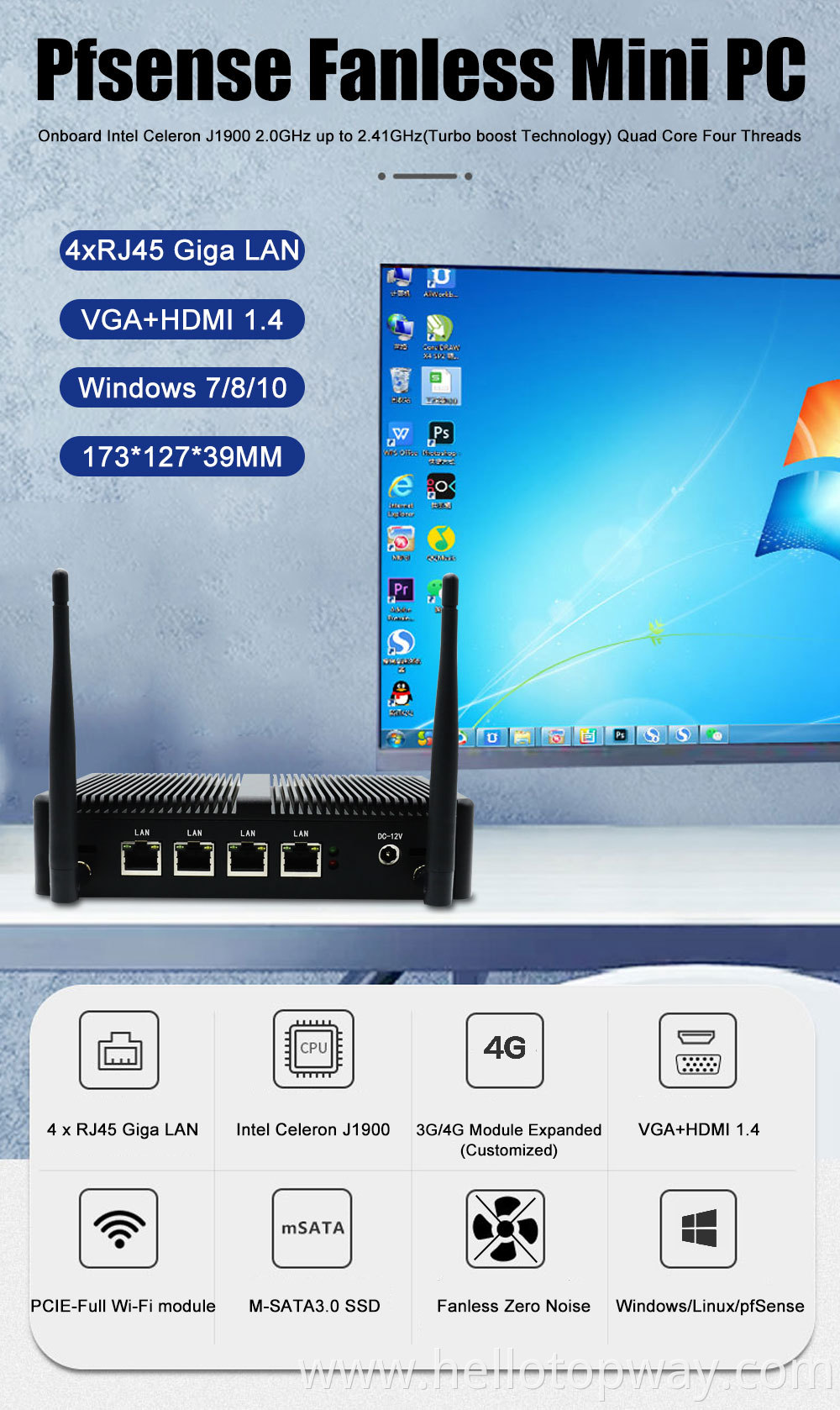

- 4 x Intel I211 gigabit LANs, support Windows 7/8/10, Linux and pfSense OS.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 173*127*39MM.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 10W save much energy and eco-friendly.
- Can stand vertically by a metal bracket coming with the computer as default accessories.
- Can be mounted back of monitor or wall by optional VESA mount.
Model: M3-J1900L4

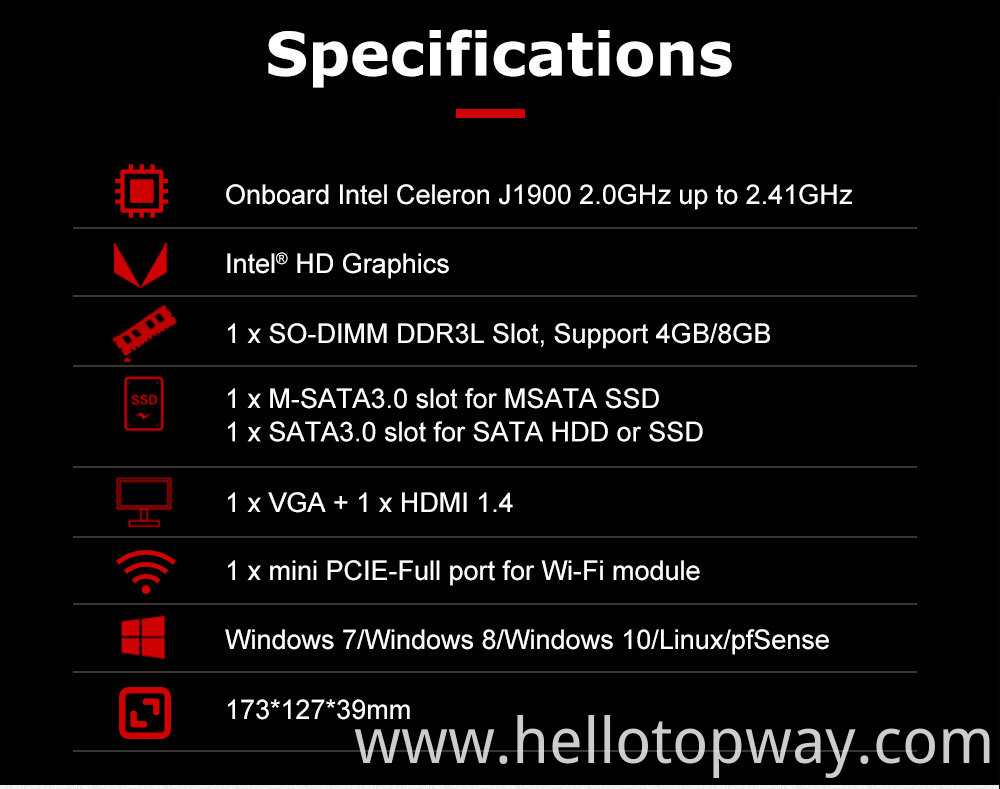

CPU: Onboard Intel Celeron J1900 2.0GHz up to 2.41GHz(Turbo boost Technology) Quad Core Four Threads
Product Categories : Mini PC > Fanless Mini PC
