Guangdong Elieken Electronic Technology Co.,Ltd.
Model No.: standing touchscreen shoeshine network 40 inch
Place Of Origin: China
Packaging: Standard Export Packing. LCL: Wooden Case. FCL: Wooden Pallet
Transportation: Ocean,Air
Supply Ability: 2500pcs/day
Port: Guangzhou
Payment Type: L/C,T/T,Others,Western Union
Incoterm: FOB,CIF,EXW,DDP,DDU

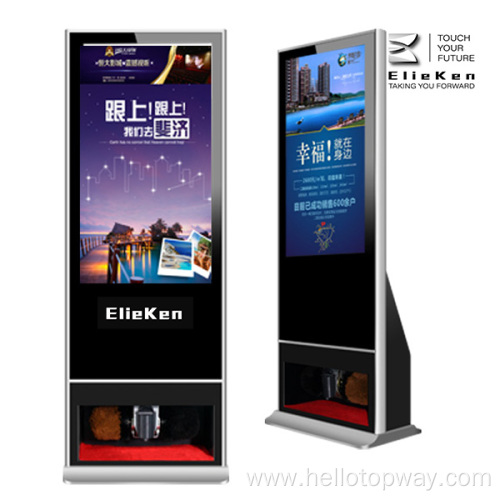

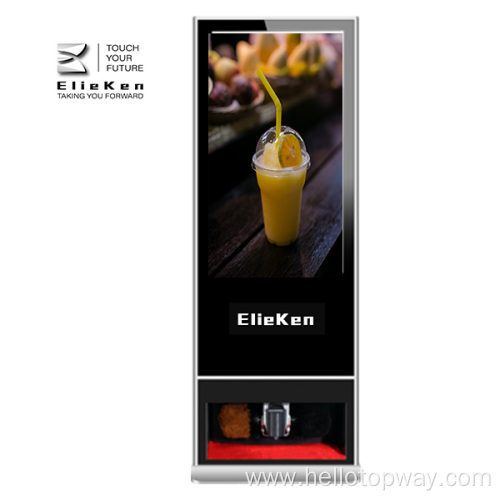

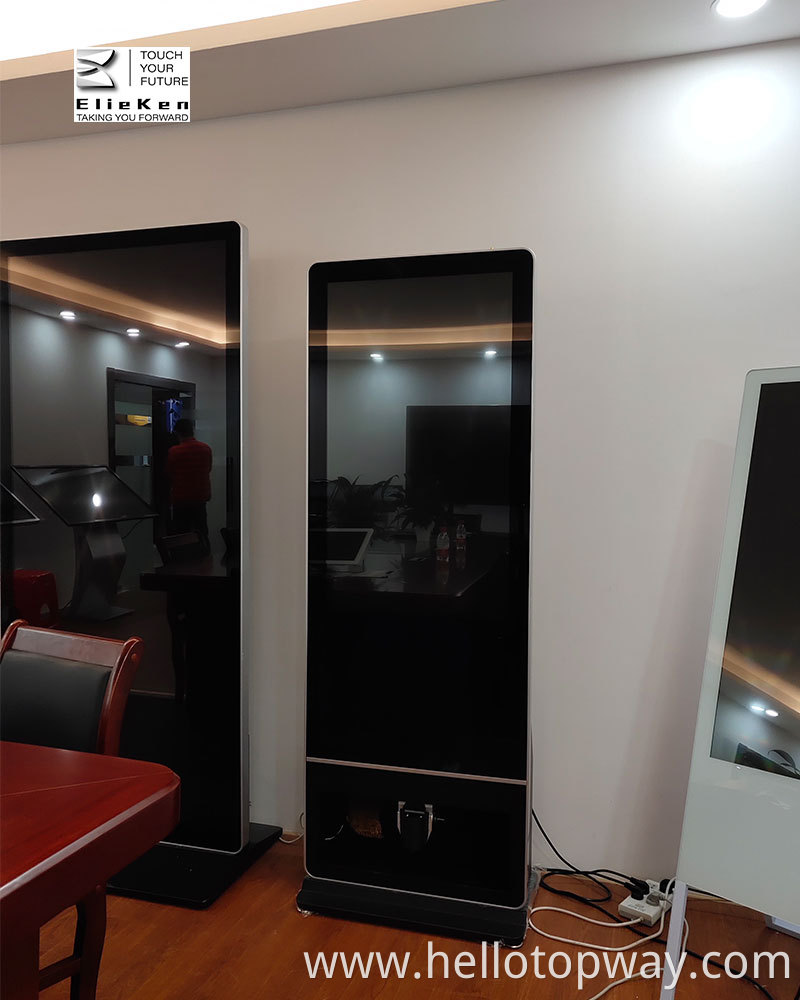

Digital Signage For Shopping Mall 40 inch touchscreen
The Digital Signage for shopping mall details determine success or failure, and quality is not afraid of honing, Vertical Digital Display Boards with Digital Signage Cloud, base procurement, micro inclination angle and internal triangular iron reinforcement, honeycomb multi mesh design, good cooling and heat dissipation effect. The back adopts humanized handle design, which is easier to move.
1. 4.9 cm ultra thin body;
2. Overall right angle streamline design, high-density aluminum alloy edging, scratch, rust and deformation prevention, seamless edging, easy maintenance, piano paint baking process;
3. Logo / application functions can be customized at will;
4. The anti-theft lock effectively prevents the U disk from being lost;

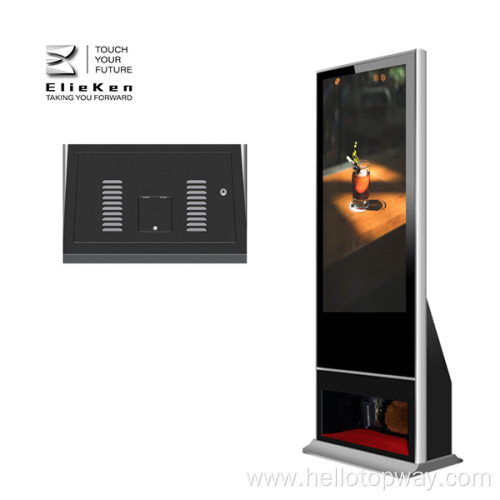

5. The combination of dust screen and cooling hole can effectively prevent dust, avoid dust backlog and prolong the service life of the machine;
6. Humanized handle design, easy to move.
| Display Panel Info. | Display Type | LCD touchscreen |
| Installation | Floor-standing shoeshine network 40 inch | |
| Screen size(mm) | 40 inch | |
| Display Colors | 10Bit, 16.7M | |
| Resolution | 1920 * 1080 UHD | |
| Brightness | 450cd/m2 | |
| View angle | 178° | |
| Ratio of display | 16:9 | |
| Tempered glass | Glass thicknesse | 4mm tempered glass |
| Glass transmittance | 95% | |
| Interface Info. | DC input | x1,(12V; 3.0A) |
| HDMI INPUT | x1 | |
| RJ45 | x1 | |
| USB 2.0 | X2 | |
| VGA | x1 | |
| Audio | x1 | |
| Other Info. | USB maximum load current | 500mA |
| Working hours | 7x48 | |
| Working voltage | AC50-60HZ 100-250V | |
| Working temperature | 0℃～40℃ | |
| Storage temperature | - 10 ℃ to 50 ℃, recommend 5 ℃ ~ 45 ℃ | |
| Working humidity environment | 10％～90％,There is no lon | |
| Power of speaker | 8Ω 12.5W*2 | |
| Playing time setting | Support | |

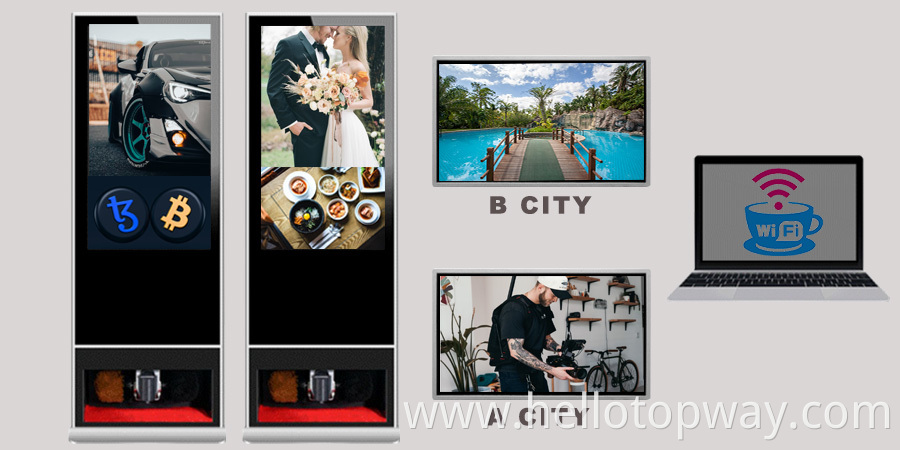

| Program transmission mode | USB、LAN、WAN | |
| Operating system | Android4.4 / windows | |
| Media format | Video format：MPEG1、MPEG2、MPEG4、H.264、WMV、MKV、TS、FLV； Audio format：MP3；Image format：JPG、JPEG、BMP、PNG、GIF；Text format：txt | |

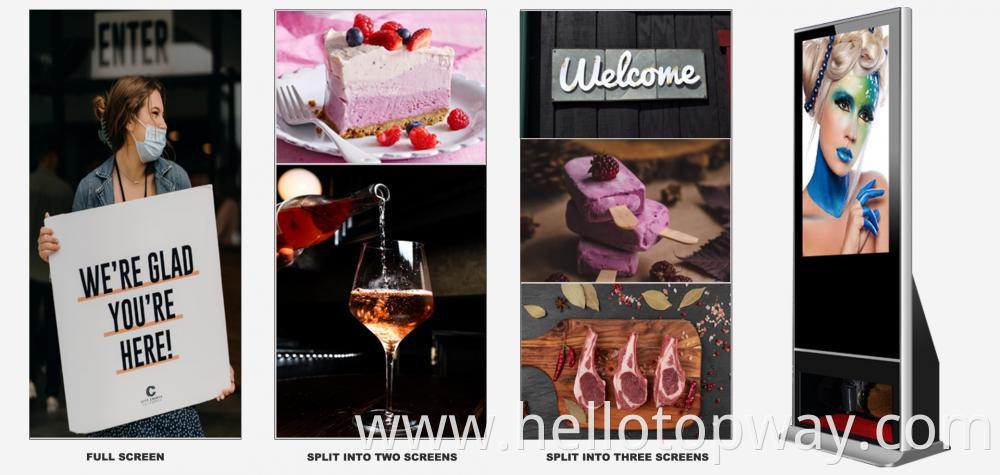

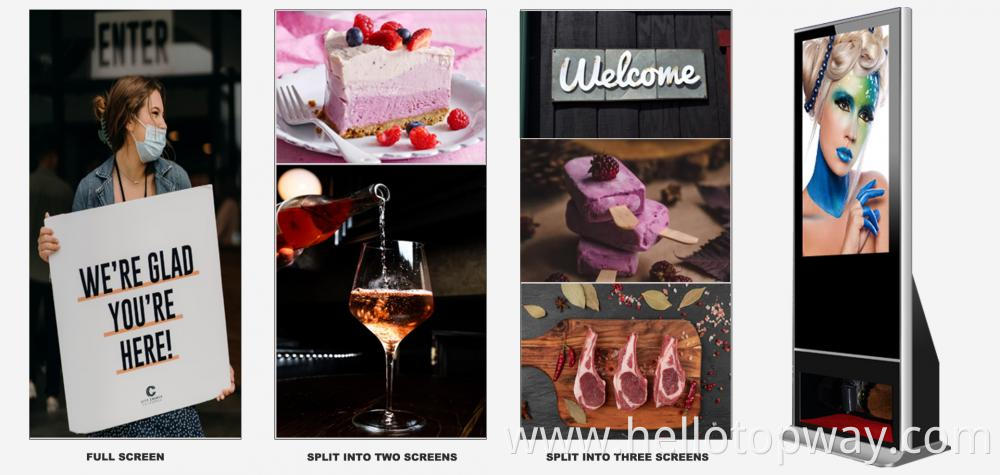

| Play mode | Landscape screen,Portrait screen,Full-screen,Split-screen | |
| Watch dog reset | Support | |
| Timing | Multi-period timing switching , port timing automatic switching | |
| Software management | Support | |
| Operation temperature | 0~40℃ | |
| Operation humidity | 10%~80%RH | |
| Frame material | Alloy | |
| Accessory | Remote*1、Power cable*1、WIFI antenna*1 | |

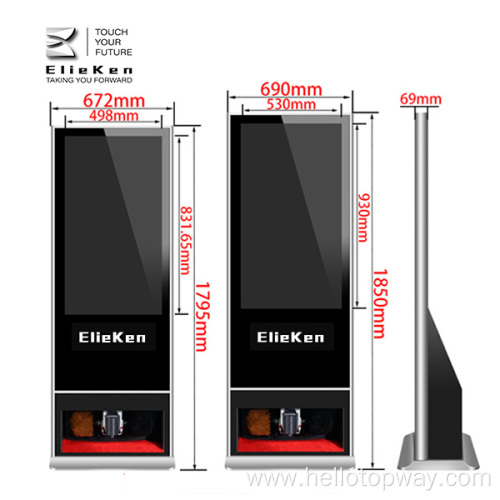

| Packaing | Size of product(mm) | 1795x672x69 |
| Size of package(mm) | 1810x685x80 | |
| N.W.(KGS) | 65 | |
| G.W.(KGS) | 75 |
ElieKen design & manufacture many different sizes of Touchscreen monitors and all in one touch pcs from 10inch to 98inch.
Good & Stablequality make TouchPie a famous brand in China.
We highly accept OEM, ODM customization.
Product Categories : Digital Signage > Digital Signage For Shopping Mall
